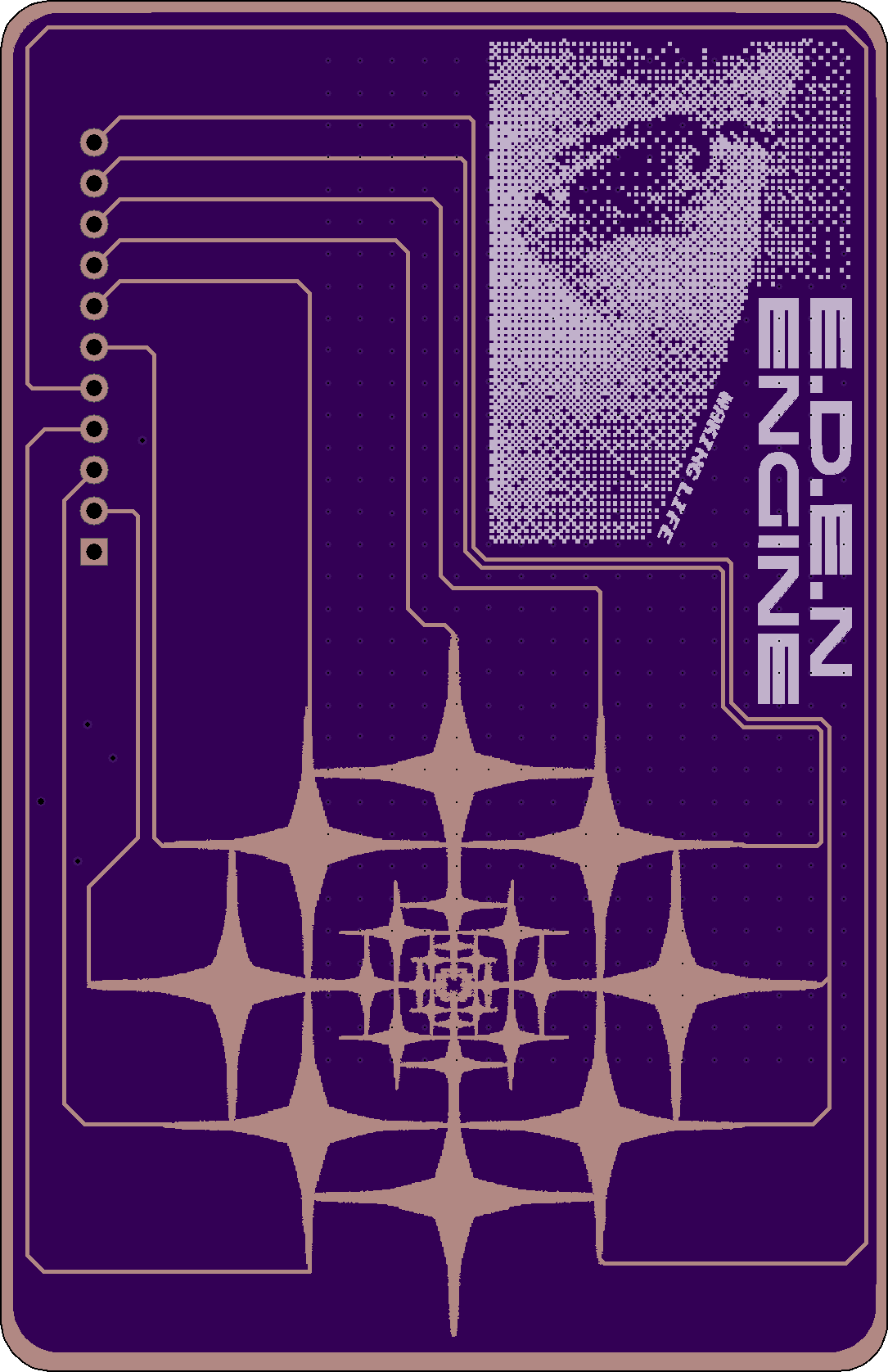

EDEN Engine is a 2 layer circuit board the size of
a credit card (~86 x 54mm) with a translucent purple substrate, exposed gold plated (ENIG) copper traces, and
purple soldermask. Designed, engineered, produced by ADVIL400 for Waking Life. Manufactured in USA. It contains the
footprint for a 512px photosensor. Edition of 25.
::::::: :::: ::: :::::::: ::::::::::: :::: ::: :::::::
:+: :+:+: :+: :+: :+: :+: :+:+: :+: :+:
+:+ :+:+:+ +:+ +:+ +:+ :+:+:+ +:+ +:+
+#++:++# +#+ +:+ +#+ :#: +#+ +#+ +:+ +#+ +#++:++#
+#+ +#+ +#+#+# +#+ +#+# +#+ +#+ +#+#+# +#+
#+# #+# #+#+# #+# #+# #+# #+# #+#+# #+#
####### ### #### ##################### #####
